Dock Layout Ideas for Ontario Waterfronts: Making Room for Boats, PWCs, and Swim Space
If you own a cottage or home on the water in Rideau Lakes, Kingston, or across Eastern Ontario, your dock layout matters just as much as the type of dock you choose. A smart layout keeps boat traffic flowing, gives kids a safe place to swim, and leaves room for guests, kayaks, and all the “extras” that tend to collect by the shore.
Below are practical layout ideas based on the way you actually use your waterfront, with examples that work well with our dock systems, boat lifts and ports, and Wave Armor products.
Start with how you use your waterfront
Before you think about shapes and sections, look at how your shoreline is used now on a busy long weekend:
- Where people naturally gather to sit or jump in
- Where your boat comes and goes most often
- Where the water is deep enough for swimming or a lift
- Where you’d prefer to keep PWCs and kayaks out of the way
From there, you can decide what needs its own “zone”:
- Main boat slip
- PWC / Wave Armor ports
- Swim area
- Seating or “patio” space on the water
A modular layout using pole docks, floating docks, or FLOE docks makes it easier to tweak zones over time as your needs change.

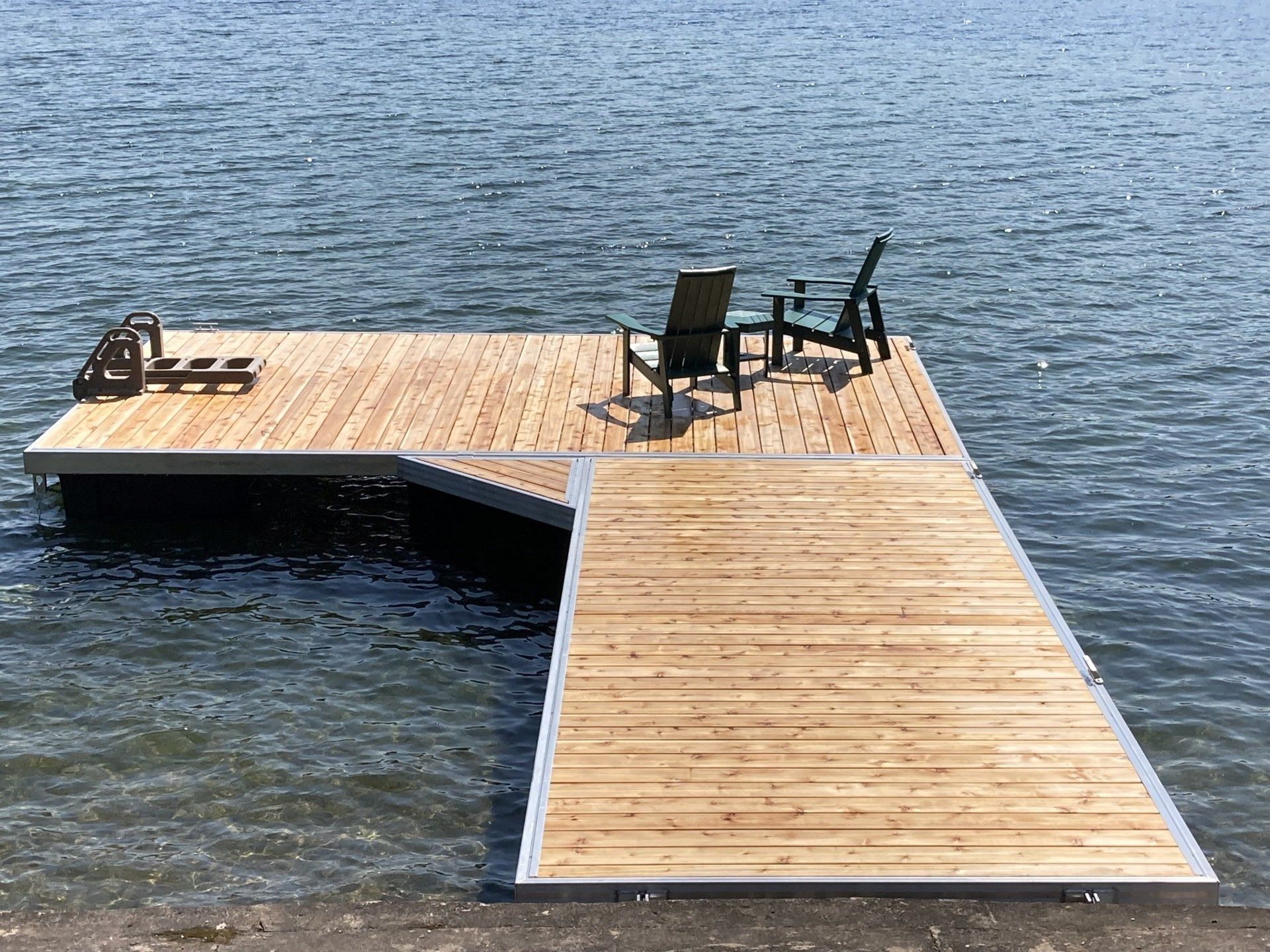

Classic L-shape: simple, safe, and easy to live with
An L-shaped layout works well for most Ontario shorelines and keeps the “traffic” and “relaxing” areas separated.
Why cottage owners like it:
- One leg for docking and loading the boat
- The other leg as a quieter swim or seating area
- Clear corner for a ladder, bench, or bumpers
A typical setup might look like this:
- Straight pole dock out from shore to reach your target depth
- Side section forming the L for seating and safe swimming
- Vertical or cantilever lift installed along the main run, sized from o
If you want extra stability and easy access in deeper water, many Rideau Lakes owners extend the L with a floating dock platform at the end, giving you a “water patio” that stays level as water levels shift.
T-shape layouts for multiple boats or bigger families
When you have more than one boat or a busier cottage, a T-shaped dock keeps things organised without asking everyone to climb over cleats and coolers.
Good fit for:
- Two boats
- Boat plus PWCs
- Families that entertain often
On many Eastern Ontario shorelines, a T layout uses:
- A straight approach built from pole docks or FLOE dock sections
- A wider cross-section at the end for seating, ladders, or a second slip
- One side of the T dedicated to a lift, the other side kept open for swimming or guest docking
You can add
dock accessories like vertical bumpers and kayak racks to keep hulls protected and walking surfaces clear.
Adding Wave Armor ports for PWCs and small boats
PWCs and small boats are fun until they’re constantly in the way. That’s where Wave Armor ports earn their keep.
Common ways to integrate them:
- Mount a PWC port off the inside of your L or T, so it’s easy to step on and off without blocking the main run
- Use a boat port parallel to your main dock for a smaller fishing boat or runabout
- Keep a clear swim area by grouping PWCs and ports on one side of the layout
Because Wave Armor systems are modular, they tie in nicely with
floating dock sections if you need more flexibility in deeper or fluctuating water.
Creating a dedicated swim zone
Kids and guests feel safer when they know exactly where swimming is encouraged and where boat traffic lives.
Ways to carve out a swim zone:
- Use the “inside” of the L or T as the main swim area
- Add a swim raft off to the side in deeper water as a clear destination for jumping, sunbathing, and hanging out
- Install ladders and vertical bumpers to guide people away from the lift side of the dock
On many cottage lakes, placing the swim zone away from the main approach also respects neighbours and keeps noise away from their property line.
Making small or narrow waterfronts work harder
Not every property has a huge shoreline. If your lot is narrow or your frontage is shared, smart layout choices keep things feeling generous instead of cramped.
Ideas that work well in tighter spaces:
- Run a single straight pole dock to your ideal depth, then add a compact platform at the end instead of long side arms
- Mount a PWC or Wave Armor port off the shore-side portion of the dock so the main run stays open for walking
- Use corner bumpers and cleats along one side only, leaving the other side clear as a safe “walkway”
If your lake has fluctuating levels or a soft bottom, combining a short fixed section with a
floating dock platform can give you more usable space without pushing the structure too far along your property line.
Thinking about seasons: install, removal, and winter protection
A layout that looks great in July also needs to be realistic for October. In Ontario’s climate, that means planning for removals, ice, and access.
Helpful ways to simplify the seasonal work:
- Use modular sections that can be disconnected and stacked on shore
- Consider a tower-style dock or lift system if you want to raise the frame out of the water rather than remove it piece by piece
- Pair your dock and lift layout with the right protection, from Arbrux to accessories like ladders and bumpers that are easy to remove before freeze-up
For more detail on winter prep, you can refer to the resource on
dock winterization and the post on
Arbrux de-icers.
When to bring in a local dock specialist
Every shoreline has quirks: steep banks, rocky entries, changing water levels, or shared access. A short visit from a dock specialist often saves you seasons of trial and error.
C&M Superior Systems has been designing and installing docks and lifts across Southern, Central, and Eastern Ontario for more than twenty years, from narrow cottage lots on the Rideau to busy family properties closer to Kingston. Our dock systems and boat lift options are custom-planned around your water depth, bottom conditions, and how you actually use the space.
If you’re ready to rethink your layout or you’re planning a new build, you can
contact the team for a site visit, layout ideas, and a quote tailored to your waterfront.
